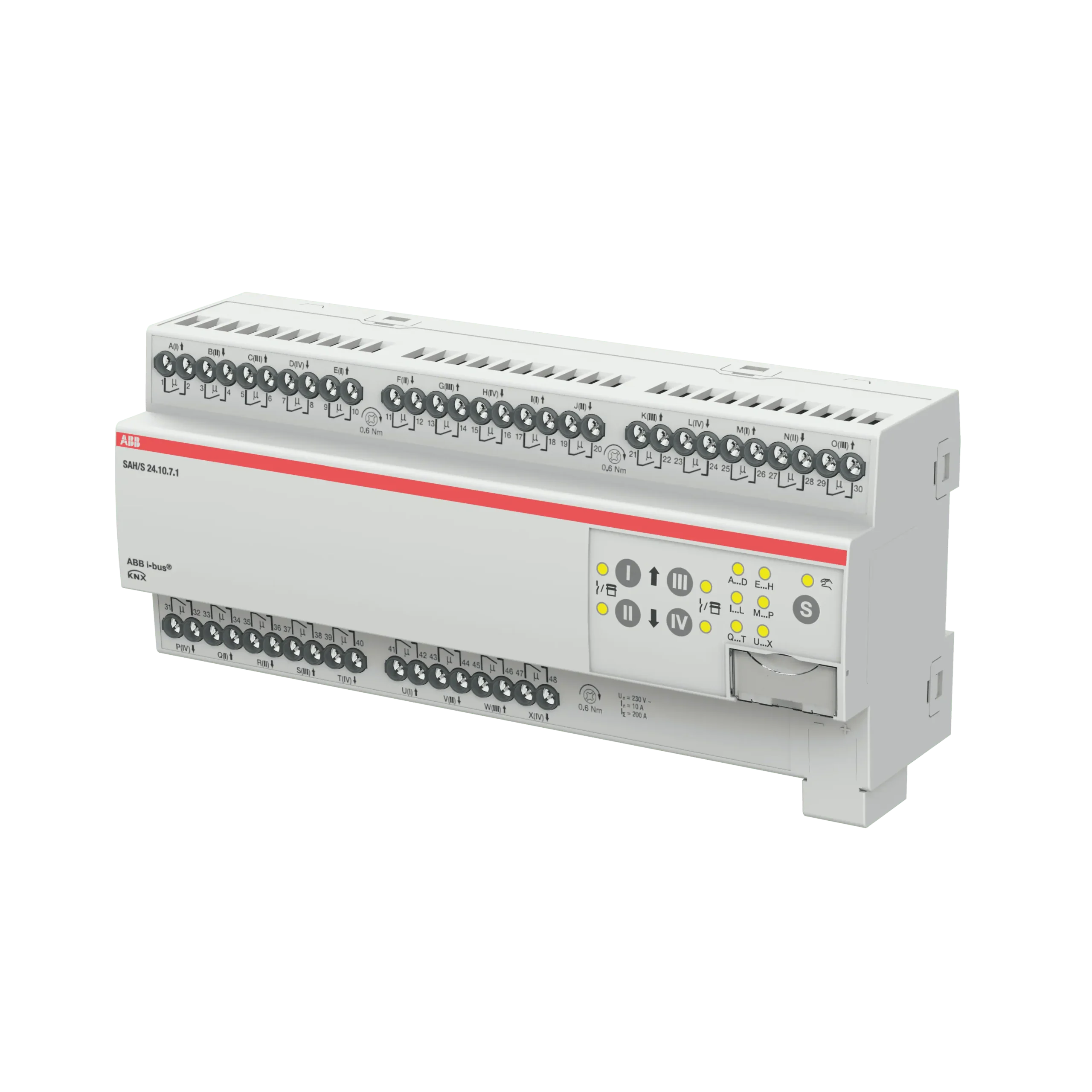

ABB KNX Switch/Shutter Actuator [SAH/S24.10.7.1], 24 Channel, 10A

Name: KNX 24 Channel Switch Actuator (SAH/S24.10.7.1) | ABB
Brand: ABB
SKU: SAH/S24.10.7.1
Price: 420.46 EUR
Availability: InStock
Rating: 4.7 (19 reviews)

SKU: SAH/S24.10.7.1 click to copy

Product condition: New and original packaging. With 18 Months Warranty.

ABB KNX Switch/Shutter Actuator [SAH/S24.10.7.1]

Original price was: €640,20.Current price is: €397,70.

+ Shipping

Bulk order possibility | Bulk discounts apply

Qty

1-4 pieces

5-9 pieces

10+

Price

In stock

Bulk Pricing Valid

Your Negotiated Price: Contact Sales Team

Fast Offer via WhatsApp

+90 216 766 54 83

[email protected]

Fast Turnaround Guarantee

We usually respond to quote requests within 2 hours during business hours

🔐 Secure Shopping and Payment

✅ Global Corporate Partner

Instant Stock and Delivery

✅ Secure Business Transactions

✅ Bulk Purchase Prices

✅ Global Corporate Partner

✅ %99 Memnuniyet Garantisi

Technical Data

ABB SAH/S24.10.7.1 (2CDG110249R0011) is a 10 A combi switch/blind actuator with 24 independent outputs via KNX protocol. The outputs can be configured for single switching or dual shutter/blind control. Ideal for controlling lighting and sun protection systems in commercial and industrial building automation projects.

Communication protocol

KNX (TP)

Voltage

230 V AC

Current

10 A

Number of Outlets

color

light grey

Width

210 mm

Height

90 mm

Depth

64.5 mm

Net Weight

0.72 kg

Product Identity

2CDG110249R0011

Mounting Type

DIN-Rail

EAN / GTIN-13

4016779066839

Manufacturer

ABB

Product Description

ABB KNX Switch/Shutter Actuator [SAH/S24.10.7.1], 24 Channel, 10A

ABB KNX Switch/Shutter Actuatorwith 24 independent outputs high performance and Flexibility offers Control electrical loads individually or 230 V AC roller shutter and roller blind drives management of the building. It provides an ideal solution for modern building automation.

Highlights:

24 Exit: You can use the electrical loads independently or in pairs for roller shutter control.
Manual Control: Outputs can be managed manually; manual control can be disabled if desired.
Powerful Integration with KNX: Compatible with ABB i-bus® KNX system, no additional power supply required.
LED Status Indicators: 12 LED indicators to monitor ON/OFF status.
Compact Design: Saves space with easy DIN rail mounting.

Technical Specifications:

Number of Outlets: 24
Operating Voltage: 230 V AC
Rated Current: 10 A
Maximum Power: 1200 W
Power Loss: 9 W

Powerful features and compact design ABB KNX Switch/Shutter Actuatorprovides superior performance in your building automation projects.

ABB SAH/S24.10.7.1 (SKU: 2CDG110249R0011), KNX (TP) protokolü üzerinden çalışan 24 kanallı kompakt kombi anahtar/panjur aktüatörüdür. Cihaz, 24 bağımsız anahtarlama rölesine sahip olup her bir çıkış 230 V AC gerilimde 10 A akım kapasitesiyle elektrik yüklerini anahtarlamak için tek başına kullanılabilir veya çiftler halinde 230 V AC panjur ya da jaluzi motorlarını kontrol etmek amacıyla yapılandırılabilir. Elektromekanik kilitleme bulunmamaktadır. Cihazın maksimum anahtarlama gücü 1200 W olup kullanım kategorisi AC-1'dir; yani endüktif olmayan veya hafif endüktif yükler (rezistif fırınlar, ısıtıcılar vb.) için uygundur. C-tipi yüklere uygun değildir. Güç kaybı 9 W seviyesindedir. DIN-Ray montajlı cihazın boyutları 210 mm (genişlik) × 90 mm (yükseklik) × 64,5 mm (derinlik) olup ağırlığı 0,72 kg'dır. 12 modül genişliğindeki bu kompakt tasarım, pano içi alan optimizasyonu sağlar. Koruma derecesi IP20 olup çalışma ortam sıcaklığı -5 °C ile +45 °C arasındadır. Cihaz, devre dışı bırakılabilen manuel kumanda özelliğine sahiptir. Manuel kumanda sayesinde çıkışlar elle çalıştırılabilir ve anahtarlama veya sürüş durumu 12 LED aracılığıyla izlenebilir. Kontak pozisyon göstergesi ON/OFF olarak görüntülenir. KNX bus hattından beslenen cihaz, ek bir güç kaynağı gerektirmez. ABB i-bus® KNX sistemiyle tam uyumlu olan bu aktüatör, CE ve RoHS (EU Direktifi 2011/65/EU ve Değişiklik 2015/863) uyumluluğuna sahiptir. ABB EcoSolutions programı kapsamında çevresel ürün beyanı (EPD) mevcuttur ve EN45555'e göre geri dönüştürülebilirlik oranı %29,7'dir.

Documents

Product Data Sheet (PDF)

SAH/S24.10.7.1 Data Sheet

Download

User manual (PDF)

SAH/S24.10.7.1 User manual

Download

Catalog (PDF)

ABB Catalog

Download

SSS

What is the maximum switching capacity of the SAH/S24.10.7.1 actuator?

Each output can carry a current of 10 A at 230 V AC. The maximum switching power is 1200 W. The category of use is AC-1 and is suitable for non-inductive or slightly inductive loads.

How to configure the device for shutter/blind control?

The 24 independent outputs can be configured in pairs to control 230 V AC roller shutter or blind motors. In this case, up to 12 roller shutter/blind drives can be controlled. However, there is no electromechanical locking feature.

What are the dimensions and mounting type of the device?

The dimensions of the DIN-Rail mounted device are 210 mm (width) × 90 mm (height) × 64.5 mm (depth) and weighs 0.72 kg. It is 12 modules wide.

Does the device require additional power supply?

No. SAH/S24.10.7.1 is powered from the KNX bus and does not require an additional power supply. The power dissipation of the device is 9 W.

Can it be used with C-type (capacitive) loads?

No. Not suitable for C-type loads according to product technical data (Suitable for C-Load: No). The category of use is AC-1 and is intended for non-inductive or slightly inductive loads such as resistive furnaces and heaters.

Delivery and Commercial Terms

🇹🇷 Turkey

The Day After

By cargo

🇦🇪 GCC

5-7 days

DHL / UPS

🇩🇪 Europe

4-6 days

UPS / DHL

🌍 Other Countries

DHL / UPS

Commercial invoices are issued in EUR. Export documents and manufacturer batch tracking are provided for all international shipments.

Complete Your Automation System

SAH/S24.10.7.1

ABB KNX Switch/Shutter Actuator [SAH/S24.10.7.1], 24 Channel, 10A

Discover the product

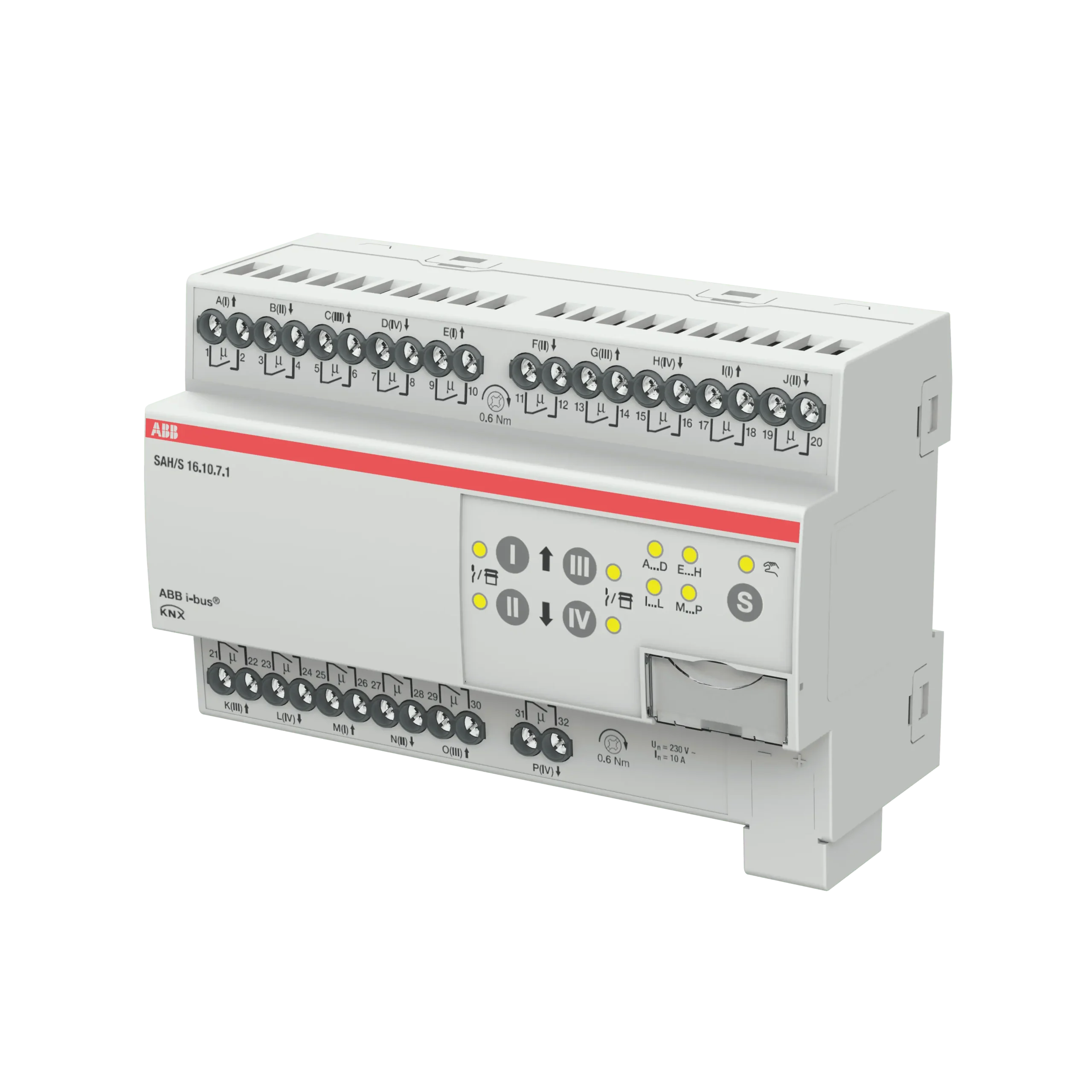

SAH/S16.10.7.1

ABB KNX Switch/Shutter Actuator [SAH/S16.10.7.1], 16 Channel, 10A

Discover the product

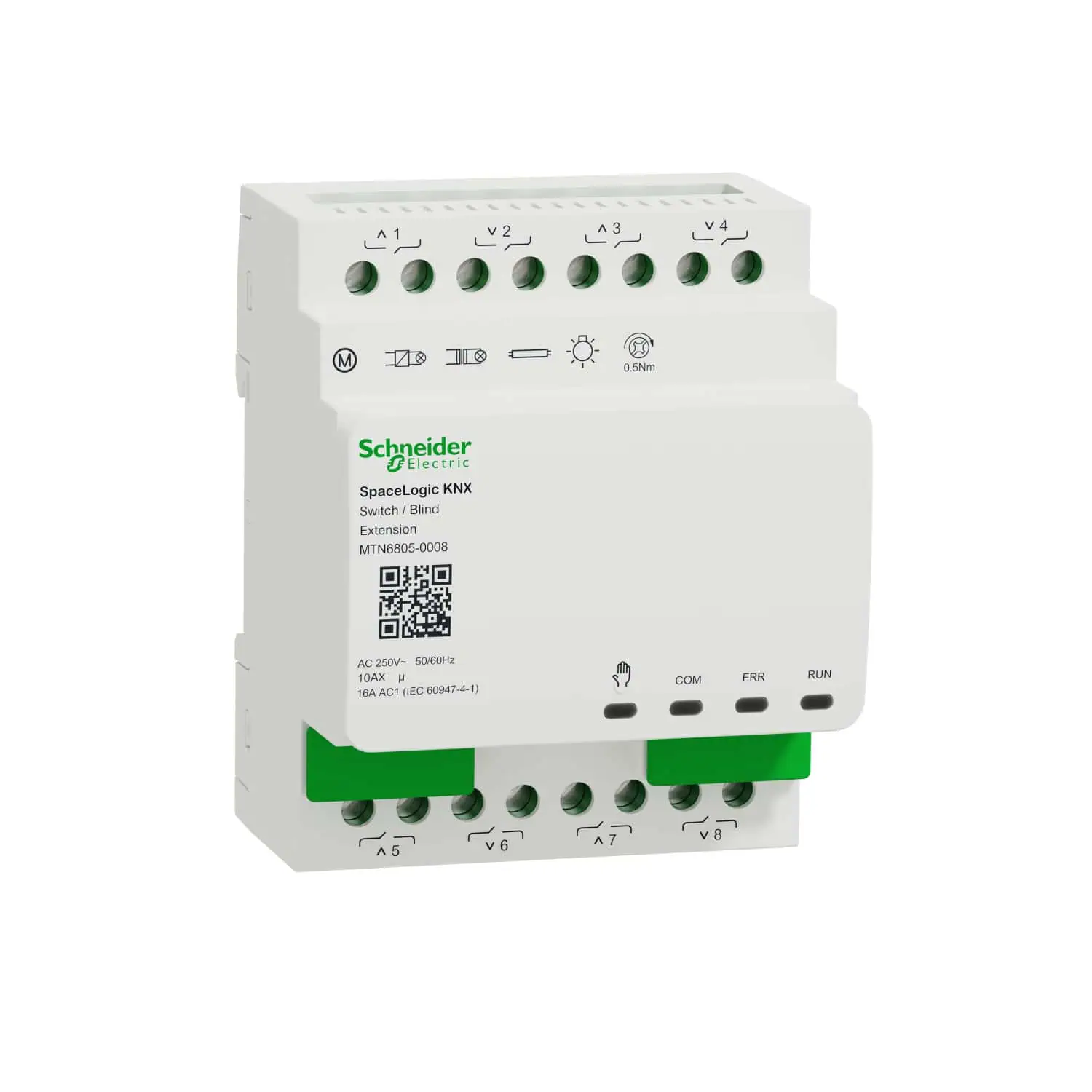

Schneider Electric KNX Shutter/Switch Actuator

MTN6805-0008

Schneider Electric SpaceLogic KNX 8 Channel Actuator MTN6805-0008 - Extension

Discover the product

MTN649912

Schneider, KNX, Switch/Shutter Actuator, [MTN649912], REG-K/12x/24x/10, manual mode, 24 Channel, 100 - 230V, 10A

Discover the product

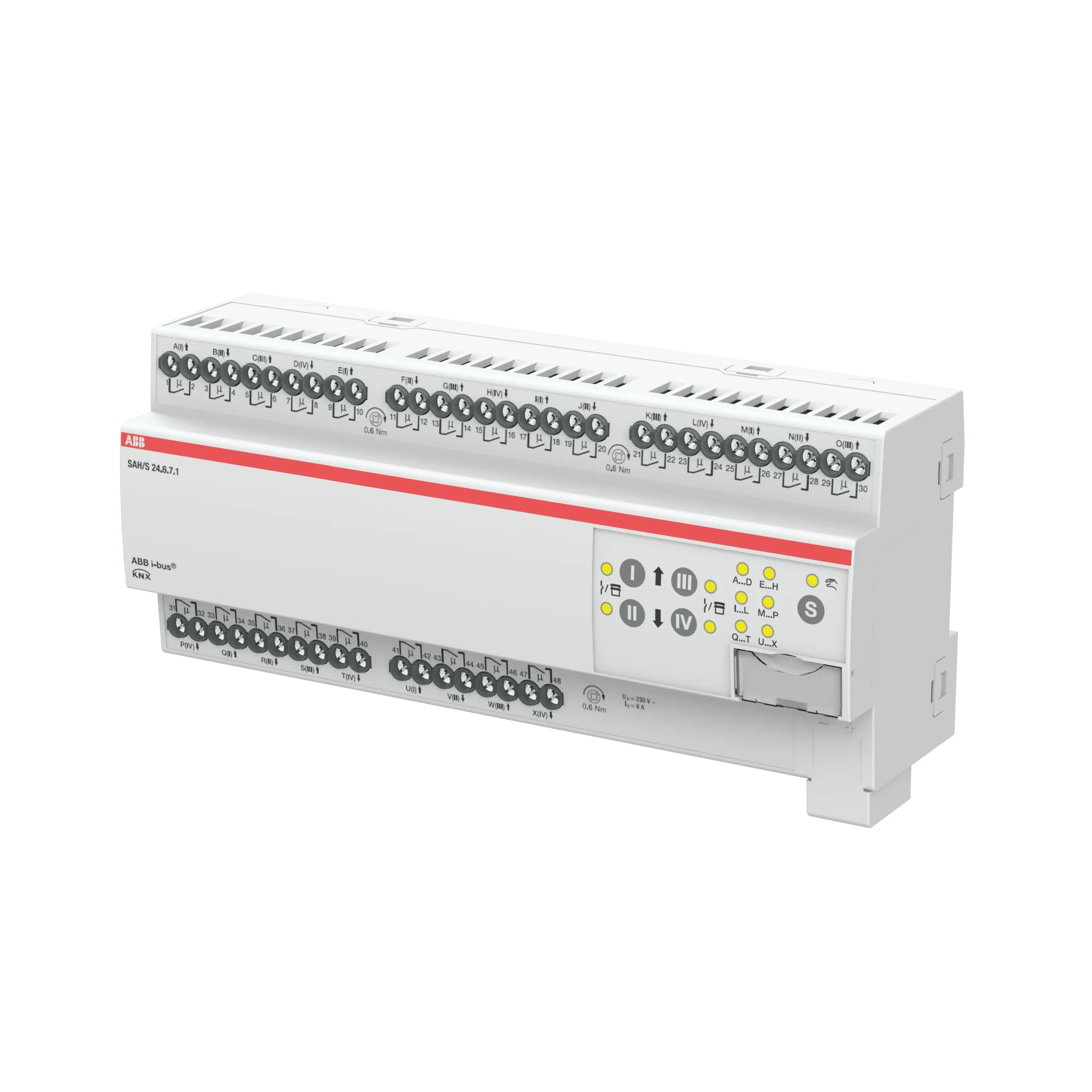

SAH/S24.6.7.1

ABB KNX Switch/Shutter Actuator SAH/S24.6.7.1, 24 Channel, 6A

Discover the product

Product Overview

ABB SAH/S24.10.7.1 (SKU: 2CDG110249R0011) is a 24-channel combi switch/blind actuator operating with KNX (TP) protocol. Each output has a capacity of 10 A at 230 V AC and the maximum switching power is 1200 W. The outputs can be used as single switching or double shutter/blind control. The dimensions of the DIN-Rail mounted device are 210 × 90 × 64.5 mm, weight 0.72 kg. Degree of protection IP20, operating temperature -5 to +45 °C. Includes manual control and 12 LED status indicators. KNX is bus powered and does not require additional power supply. CE and RoHS compliant.
