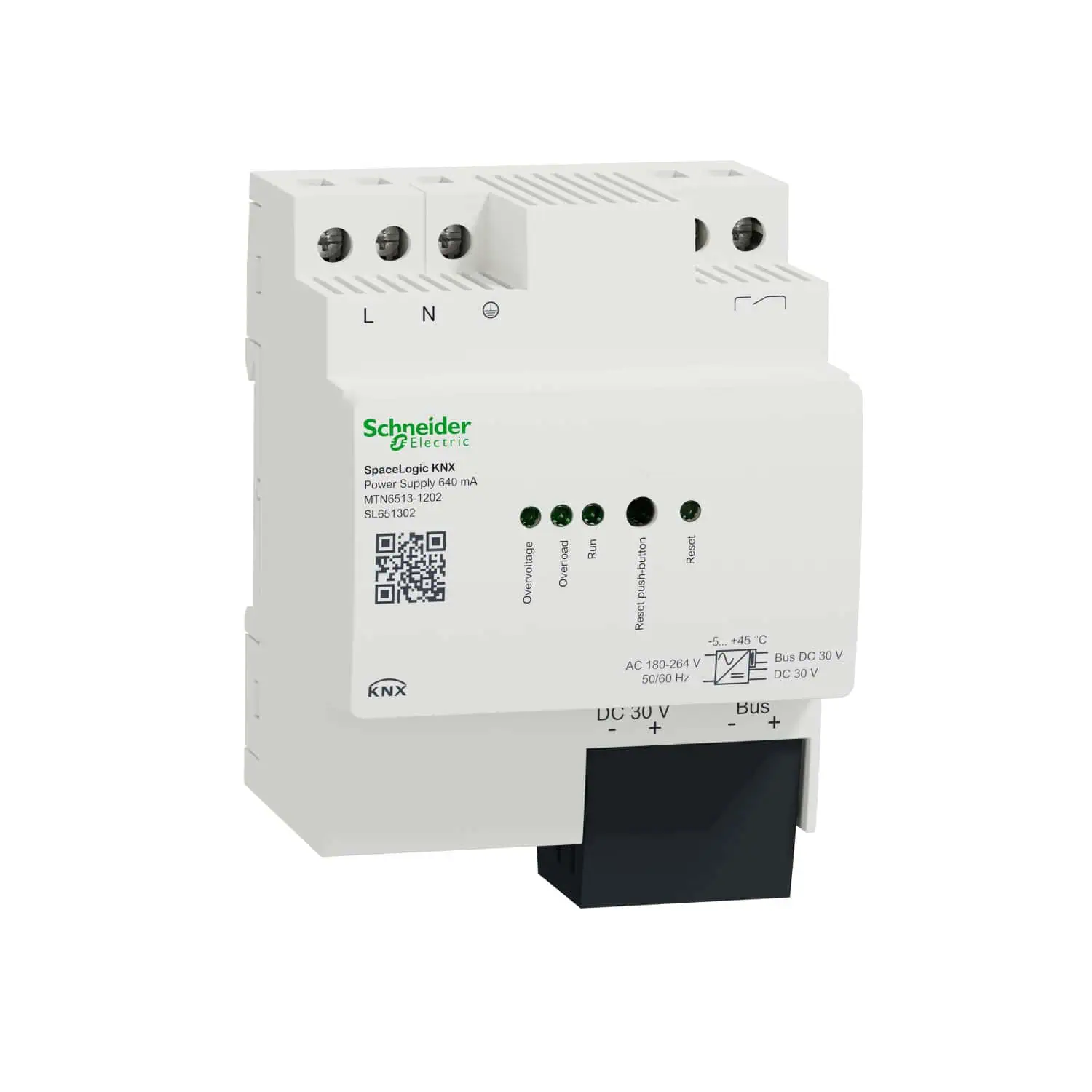

SpaceLogic Schneider KNX Power Supply MTN6513-1202

The MTN6513-1202 product coded power supply within the SpaceLogic KNX series has been developed to stably generate bus voltage in building automation systems with KNX TP256 topology. In terms of technical specifications, this unit, which operates at 220...240 V AC nominal input voltage and 50/60 Hz frequency values, exhibits a very low power consumption of maximum 2.9 W in the operational process. The device provides a nominal output current of 640 mA to the system architecture and has a protection capacity of up to 1.5 A in possible short circuit situations. Its physical design is built for standard DIN rail mounting, covering 4 DIN modules (72 mm wide). In terms of connection flexibility, the screw terminals allow the safe connection of solid and clamped cables with cross-sections from 0.5 mm² to 4 mm² as well as twisted cables with ferrules from 0.5 mm² to 2.5 mm². In addition to the KNX output with integrated choke, the power supply has an independent 30 V DC SELV output that can be used to supply additional equipment. In scenarios with high current requirements, two similar units can be switched in parallel to increase capacity. For operational safety, the unit is equipped with LED signaling and a floating contact for diagnostic messages. The unit operates without loss of performance in an operating temperature range of -5°C to +45°C and relative humidity of . With 90 mm height and 65 mm depth dimensions, it offers a compact solution for in-panel placement.
