Description
Schneider Push-button Pro T KNX Automation Switch [MTN6185-6034] - Room Temperature Controlled with D-Life, Anthracite
Push-button Pro T enjoy modern automation! This stylish switch with touch-free control works together with the temperature sensor to put comfort and control in your hands. And it is programmable with ETS4 and above.
Highlights:
- Multifunctional Design: 1-4 touch buttons for staging, switching, switching and dimming functions.
- RTC's: Provides optimum temperature setting with built-in temperature sensor.
- Night Mode: LEDs illuminate with reduced brightness, offering visibility even in low light.
- Easy Setting Options: Quick preset or advanced individual configuration.
- Backlit Symbols: Illuminated icons for easy marking and night use.
Technical Specifications:
- Control Type: Touch, contactless
- Material: Anthracite-toned, polished plastic
- Number of Functions: 4 buttons

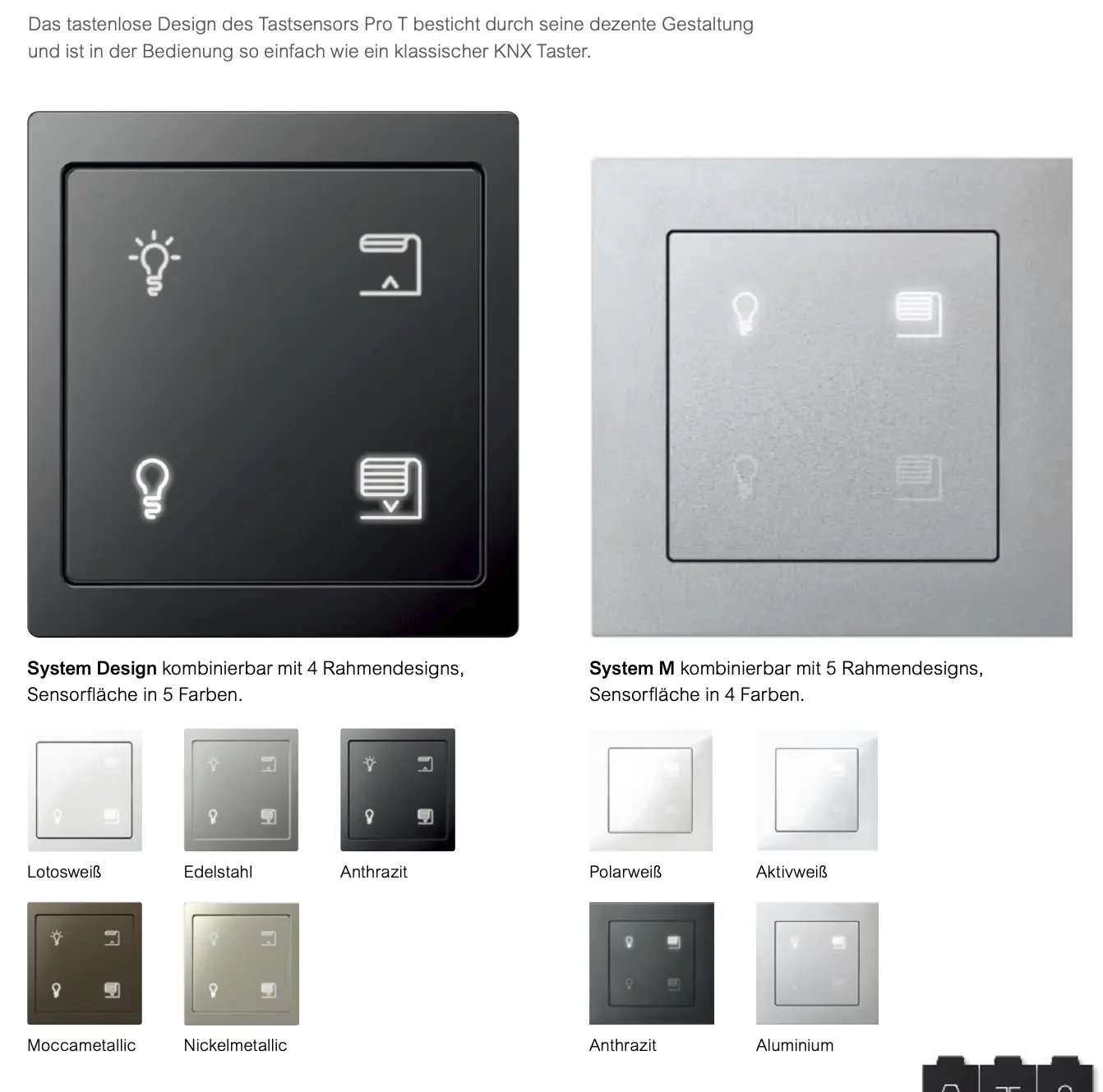

Schneider Electric SpaceLogic KNX series Push-button Pro T with SKU code MTN6185-6034 is an advanced control unit in the Merten System Design aesthetic group. The device, which operates with 20 mA current consumption via the KNX bus, has electromechanical technology. It is suitable for flush mounting type and measures 71 mm wide, 71 mm high and 7.7 cm deep. From 1 to 4 button configurations can be made via 4 function buttons. Its technical capacity allows the triggering of 1-, 2-, 4- or 8-bit telegrams as well as 2-byte telegrams. It supports contactless control mode with integrated temperature sensor and proximity function. The device has one white/green LED per channel as status indicator and can switch to low brightness level in night mode. The product, which can be programmed with ETS4 and higher software, performs switching, dimming, blind control (single/double surface) and 8-bit linear regulator functions. Its anthracite (RAL 7021) matt plastic surface is varnished and halogen-free. This mechanism has an IP20 protection class and is supplied complete with fixing frame and cover plate.
