KNX 8 Channel Hybrid Actuator (MTN6700-0108) | Schneider

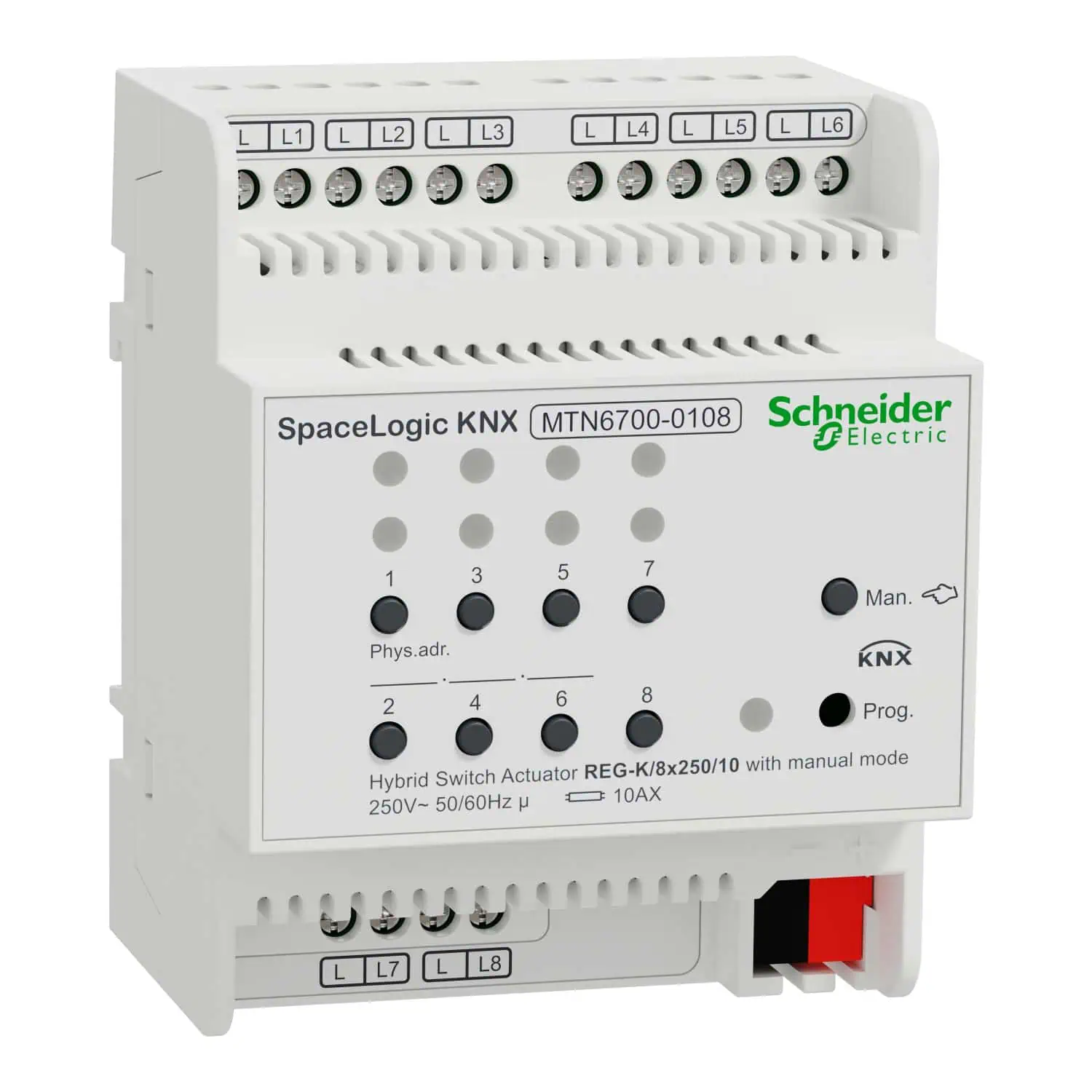

Schneider Electric SpaceLogic KNX Hybrid Switch Actuator (MTN6700-0108) is an 8-channel relay-based switching device. Operating over the KNX bus protocol, this actuator is ready to use directly when bus voltage is applied without requiring external power supply with manual mode support. The nominal operating voltage of the device is 250 VAC and the mains frequency is 50/60 Hz. The rated current is 10AX. Load carrying capacities are as follows per channel: LED lamp 250 W (250 V AC), incandescent lamp 2500 W (230 V AC), fluorescent lamp 2500 W (230 V AC) with electronic ballast, low voltage halogen lamp 1100 W (230 V) with electronic transformer, low voltage lamp 900 W (230 V) with iron core transformer, motor load 1500 VA (230 V) and capacitive load 140 µF (230 V AC). The physical dimensions are 72 mm (width) x 90 mm (height) x 64 mm (depth) and the package dimensions are 9.2 cm x 9.1 cm x 13.1 cm. The device is suitable for DIN rail mounting with a width of 4 modules (18 mm). The actuator has an IP20 protection rating and can operate in ambient temperatures between -5°C and +45°C. Curtain control, switch function and heating channels are freely configurable. Physical address assignment and parameterization is carried out with the ETS software. Connection to the KNX is via the bus connection terminal on the front panel. After the application is loaded, the green LED indicates that the device is ready for operation. The device, which has a white plastic body, complies with IEC60947-4-1 and IEC60669-2-1 standards. It is ideal for residential apartments and small office buildings.
