ABB, KNX, [UD/S6.315.2.1], LED-Dim actuator 6x315W

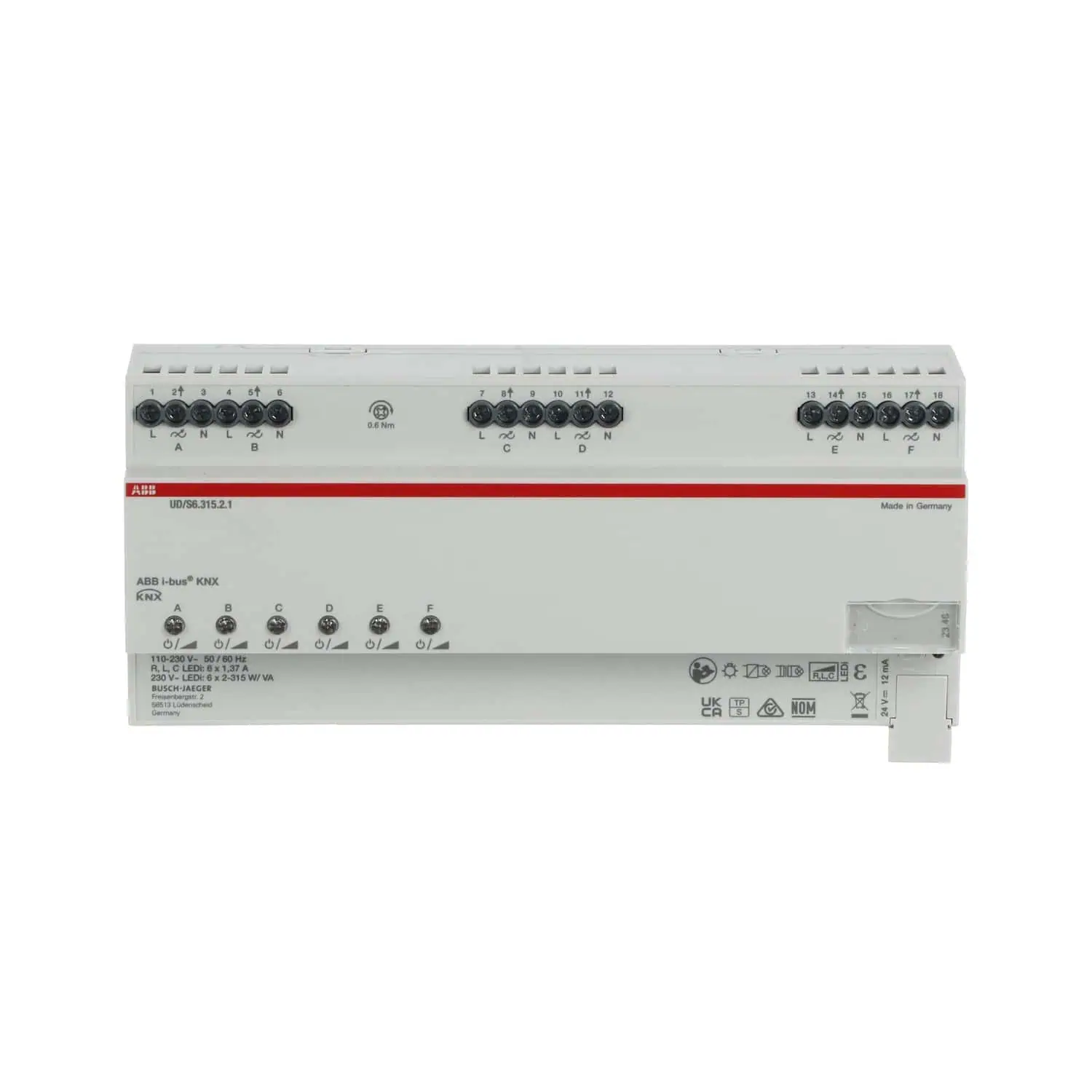

The ABB UD/S6.315.2.1 (SKU: 2CKA006197A0061) is a 6-channel universal dimmer actuator operating via the KNX (TP) protocol. It is optimized for retrofit LED lamps (LEDi) and is also compatible with incandescent lamps, conventional or electronically transformer-equipped low-voltage halogen lamps, 230V halogen lamps, and dimmable energy-saving halogen lamps. The device is DIN-rail mounted and measures 210 mm (width) x 90 mm (height) x 63.5 mm (depth), weighing 637.5 g. It has an IP20 protection class and an operating temperature range of -5°C to +45°C. The supply voltage is 110 V AC/DC, and the rated frequency is 50/60 Hz. At a mains voltage of 230 V~, the nominal power ratings are as follows: For dimmable 230 V~ LED lamps, in trailing edge control, up to 6 x 315 W/VA, 2 x 700 W/VA or 3 x 500 W/VA; in leading edge control, up to 6 x 120 W/VA, 2 x 250 W/VA or 3 x 200 W/VA. With inductive L-transformers, power is between 6 x 315 W/VA, 3 x 500 W/VA and 2 x 700 W/VA; with electronic C-transformers, power is between 6 x 315 W/VA, 3 x 500 W/VA and 2 x 700 W/VA; with electronic LC-transformers, power is between 6 x 120 W/VA, 2 x 250 W/VA and 3 x 200 W/VA. The minimum load is 2 W. Automatic load detection is available and can be disabled. Each channel has a separate N-connector. Outputs can be connected in parallel to increase output power. It has an integrated bus connector. Manual operation is possible without bus voltage or in an unprogrammed state. Programming can be done via ETS even without a 230V supply voltage. Comprehensive test and diagnostic functions are offered via the i-Bus tool.
